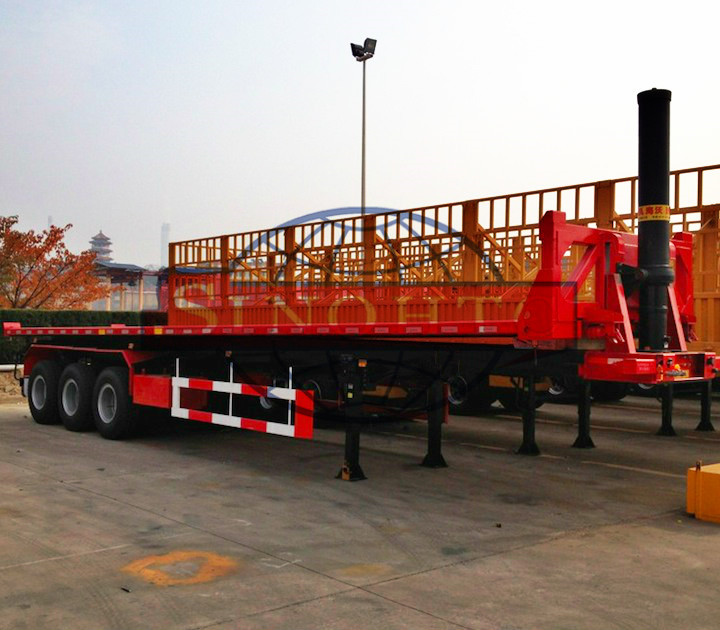

Skeletal / Flatbed Container Semi Trailer 3 Axle 20 FT Dump Semi Trailer

Product Categories

Qingdao Hetanch Truck Co.,Ltd

Contact Now

Name: Skeletal Flatbed Container Semi Trailer 3 Axle 20 FT Dump Semi Trailer
Brand: SINOHTC
Price: 1 USD

Brand Name : SINOHTC

Model Number : HTC9401PBLZ

Certification : ISO9001

Place of Origin : Qingdao China

MOQ : 1 unit

Price : Negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 50 UNITS PER MONTH

Delivery Time : 30 DAYS

Packaging Details : Bulk cargo vessel, RO-RO vessel, 40/45 HQ container

Axle No. : 3

Axle Brand : FUWA,

Capacity : >40 tons

Used for : 20ft,

Vehicle Light : LED

HS Code : 870193100

type : dump trailer

Contact Now

3 Axles 20FT Skeletal/Flatbed Dump Trailer/Tipper Semi Trailer/tri axle container dump trailer

Specifications:

Manufacturer Name		QINGDAO HETANCH TRUCK CO.,LTD
Type		CONTAINER dumping trailer
Weight:
	Tare Weight	7.85T-8.5T
	Payload	30T-60T
	Axle Weight Load	14T per axle
Specification:
	Axle number	Two or Three
	Axle specs.	FUWA /BPW brand
	Suspension	Mechnical suspensions
	King Pin	50#/90#
	Dimensions (LxWxH)	1000/11000/12000/13000× 2480/2500× 3040mm(Outside) 9800/10890/11800/12800× 2270/2300× 1500mm(Inner)
	Rim	9.00/8.00
	Lifting system	Four or five ø 125lifting cylinders, one piece of ø 140displacement cylinder
	Steel Spring	10pieces
Tire:
	Tire specs.	12R22.5-18/11.00R20-18
	Number of Tire	8/12pieces
	Spare Tire Carriers	1/2 pieces
Frame: (specs. and materials)		Main frame is height 450/500mm , .
	Frame Beam	Upper plate is 14mm, lower plate is14/16mm, middle is8/10mm side beam is 16# U-steel. left side: 3 or 4 pcs French door; Right side: 3 or 4 pcs hanging door. With19 pcs lock bar.
	Frame Floor	The Thickness is 3mm flat bed
Brake:		Two double and three double chamber
Electrical:		24V 7 ways(7 wire harness)
Light color:
	Side marker lamp	Orange
	Rear lamp	Red
	Turn signal lamp	Orange
Landing Leg support:		28T
Miscellaneous:
	Painting	Accordingly
	Tools box	One pieces or According to the buyer

Skeletal / Flatbed Container Semi Trailer 3 Axle 20 FT Dump Semi Trailer

2/3Axles Hydraulic Lift skeleton Tipper Chassis/Rear Dump Trailer/20ft 40ft Container Tipper Flatbed Semi Trailer

Quick Details

Use:Container Tipping Trailer Type: Container Semi-Trailer

Material: Steel Certification: BV SGS

Size: Buyer's Request OEM No.: 20ft tipping container trailer

Max Payload: 40T Place of Origin: Shandong, China (Mainland)

Brand Name: SINOHTC Model Number: container flatbed dump trailer

Axle:13 Ton Fuwa Brand Tire: 12.00R22.5

Suspension:Mechanical Suspension Landing Gear:Standard 28 Ton

King pin:2"(50mm)or3.5"(90mm) JOST Color: Customer's Request

Product name: Self unloading 40ft Container Flatbe
